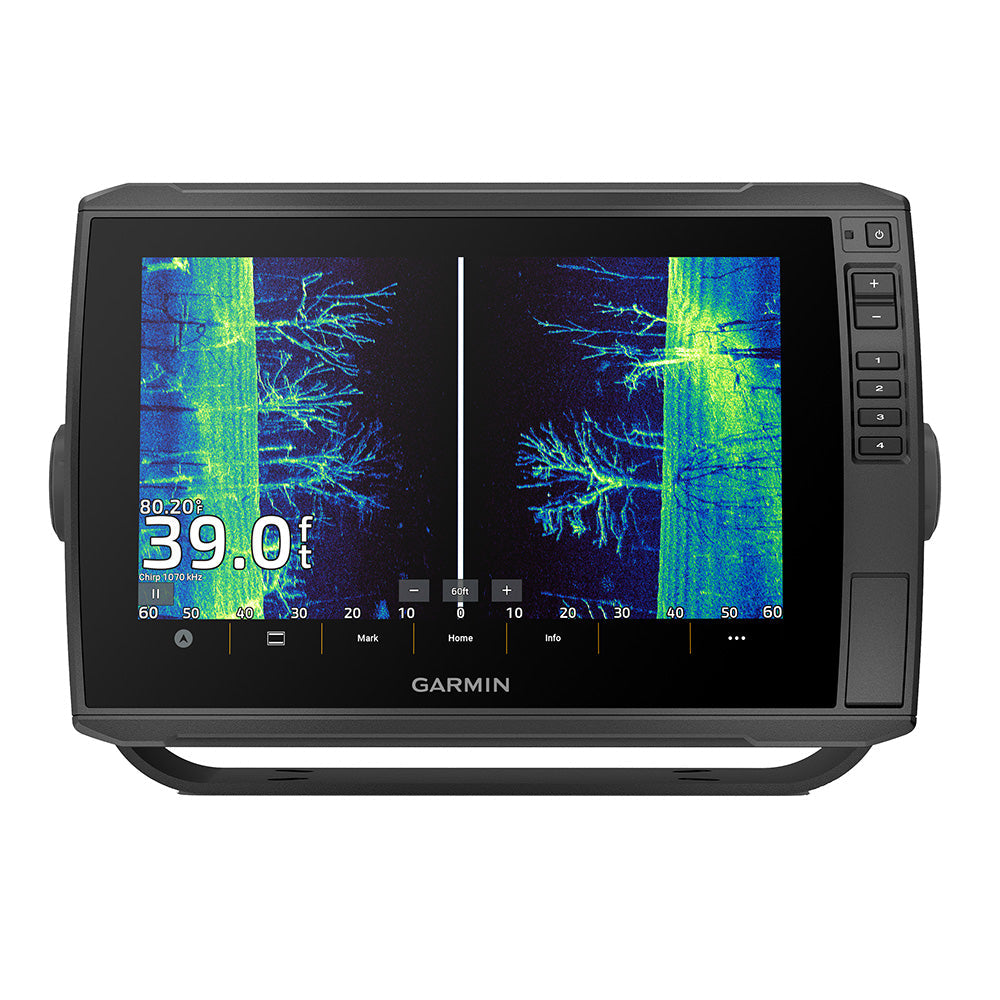

Garmin ECHOMAP Ultra 2 106sv w/o Transducer - Garmin Navionics+ [010-02880-00]

Garmin ECHOMAP Ultra 2 106sv w/o Transducer - Garmin Navionics+

The Garmin 106sv UHD2 Fish Finder is your ultimate companion for a successful fishing adventure. With its high-resolution display and advanced sonar technology, you can locate fish and underwater structures with remarkable accuracy.

Main Features:

🔍 Ultra High-Definition Scanning Sonar

• Provides crystal-clear images of fish and structures below and around your boat.

📺 10" Bright, Sunlight-Readable Display

• Enjoy a large, easy-to-read screen that remains clear even in bright sunlight.

📡 Built-in GPS and Quickdraw Contours

• Create personalized fishing maps with 1-foot contours, allowing you to mark hotspots and navigate effortlessly.

🌊 SideVü, ClearVü, and Traditional CHIRP Sonar

• Get a comprehensive view of what's beneath your boat with multiple sonar options.

📡 Wireless Connectivity

• Connect to the ActiveCaptain app for smart notifications, software updates, and access to the OneChart feature.

🚤 Rugged and Durable Design

• Built to withstand the elements, ensuring reliable performance in all conditions.

💾 Preloaded Maps and Waypoints

• Comes with detailed maps and the ability to mark and save waypoints for future reference.

Upgrade your fishing experience with the Garmin 106sv UHD2 Fish Finder and discover a new level of precision and clarity on the water.

In the Box:

• ECHOMAP Ultra 106sv with optional Garmin Navionics+
• Power/data cable
• Bail mount with quick-release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

Specifications

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
• Weight: 4.0 lbs (1.8 kg)
• Waterproof: IPX7
• Touchscreen: Yes
• Display Type: WXGA, IPS
• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist

Maps & Memory:

• Accepts Data Cards: 2 microSD cards
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• Has Built-In Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+™: Yes
• Garmin Navionics+ Vision+™: Yes
• TOPO 100k: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• ActiveCaptain® Compatible: Yes
• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC
• Typical Current Draw at 12 VDC: 2.5 A
• Maximum Current Draw at 12 VDC: 5.0 A
• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes
• Power Output: 600 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

Connections:

• NMEA 2000® Ports: 1
• Garmin Marine Network Ports: 2 (Large Connector)
• 12-Pin Transducer Ports: 12-Pin Scanning Sonar
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Screen Size: 10"
• Touchscreen: Yes
• Transducer Included: No
